AVI 110°

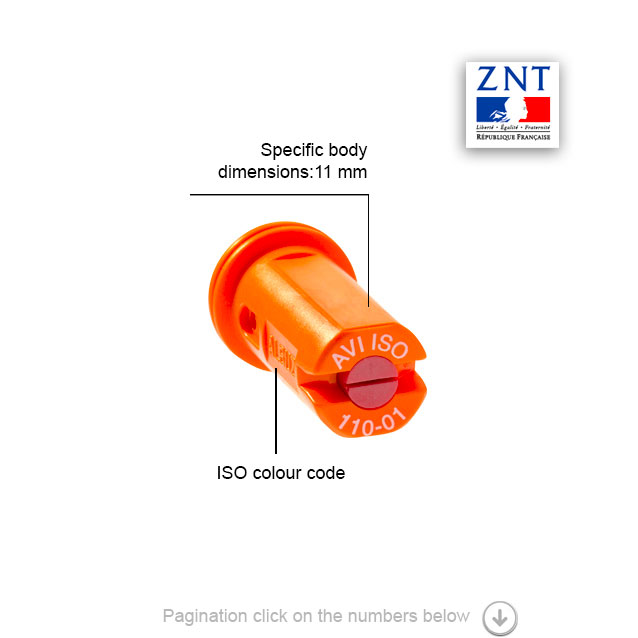

AVI 110° Air induction flat spray nozzle
APPLICATIONS
All types of treatments (systemic and contact products) including liquid fertilizers.

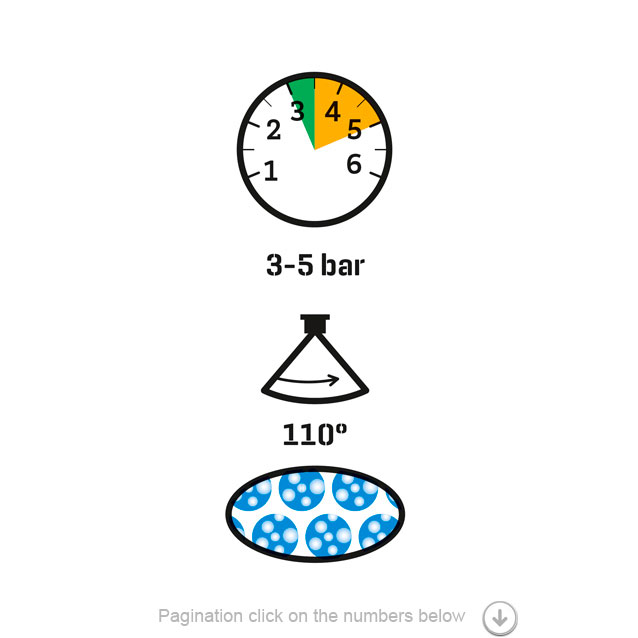

- Designed to be used over a wide range of pressures (from 3 to 5 bar).
- Pink ALBUZ® ceramic double orifices (excellent precision and high wear resistance).
- Flat fan pattern angle 110°.
- Wide angle flat : spray overlap ensuring uniform distribution on the ground.
- Designed for all types nozzle-holders.
- Designed for all types of nozzle-holders, using the same cap as ALBUZ® APE nozzles.
- Air-injected spray nozzle (venturi system) : sprays large drops charged with air bubbles ; the AVI 110° model is certified at 75 anti-drift.
- Almost totally eliminate drift, while increasing the number of impacts (excellent coverage of the treated zone).
- Anti-clogging design and double air-intake orifice.
- Compact design (28 mm lenght) adapted to all booms and nozzle holders.
- Minimum height boom recommended: 50/60 cm.
- Recommended pressure: 3 bar
