AGRICULTURAL NOZZLES

CVI 110°

All types of treatment (systemic and contact products) including liquid fertilisers

FLOW CHART CATALOGUE

Designed to be used over a wide range of pressures (from 1.5 to 3 bar).

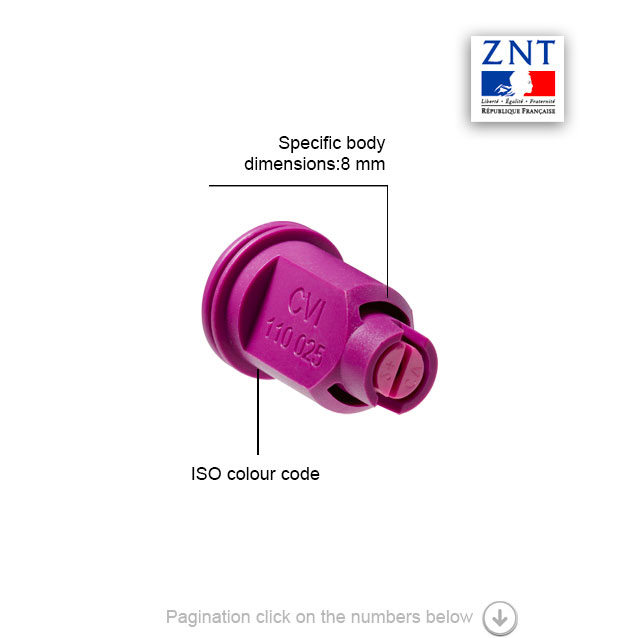

Pink ALBUZ® ceramic orifice (excellent precision and high wear resistance).
Flat fan pattern angle 110°. Wide angle flat spray: overlap required to ensure uniform distribution on the ground.
Designed for all types of nozzle holders, using the same cap as ISO nozzles (for example: AXI)

Air induction spray nozzle (venturi system): sprays large drops filled with air bubbles which do not drift and which burst into fine droplets on contact with the plant.
Almost totally eliminate drift, while increasing the number of impacts (excellent coverage of the treated zone).
Anti-clogging design and double air-intake orifice.
Compact design (22 mm lenght) adapted to all booms and nozzles- holders.
Minimum height boom recommended: 50/60 cm.
Recommended pressure: 2 bar.
