AGRICULTURAL NOZZLES

CVI-TWIN 110°

All types of treatment (systemic and contact products) including liquid fertilisers

FLOW CHART CATALOGUE

Designed to be used over a wide range of pressures (from 1.5 to 3 bar).
Pink ALBUZ® ceramic orifice (excellent precision and high wear resistance).
Flat fan pattern angle 110°. Wide angle flat spray: overlap required to ensure uniform distribution on the ground.

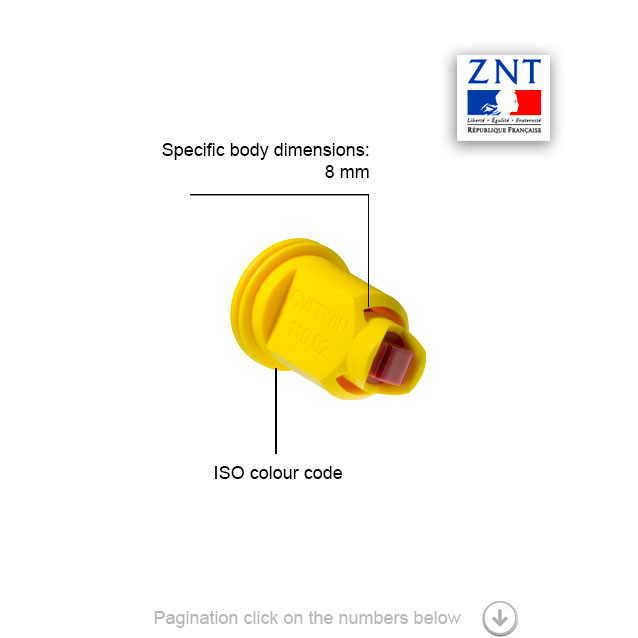

Designed for all types of nozzle holders, using the same cap which accept nozzles measuring 8 mm across flats. (for example: AXI and CVI)

The inclination of the jets improves the penetration into the vegetation.
Air induction nozzle (Venturi system) : sprays large drops filled with air bubbles, which do not drift and burst to form finer droplets on contact with the plant.
Anti-clogging design and double air-intake orifice.
Compact design (22 mm lenght) adapted to all booms and nozzles- holders.
Minimum height boom recommended: 50/60 cm.
Recommended pressure: 2 bar.
Use 80 mesh filters for green (015) and yellow (02) models.
